Industry Canada File Number: 4776
CRTC Decision Number: 60286
Channel/Class: 244C1 (96.7)
Broadcasting Mode: Stereo
Status: Operational
NAD83 Coordinates: 42 8' 0.96" N 82 45' 45.00" W
Short Spacing Code: * #LI
Site Elevation: 198 m
Subsidiary Carrier Multiple Operation
| Effective Radiated Power |
10.65 kW |
10.19 kW |
| Maximum Effective Radiated Power |
27 kW |
22.7 kW |
| Height Above Average Terrain |
152m |
152m |
| Radiation Center Above Ground Level |
144m |
144m |
| Radiation Center Above Mean Sea Level |
342m |
342m |
Overall Antenna Height Above Ground: 150 m

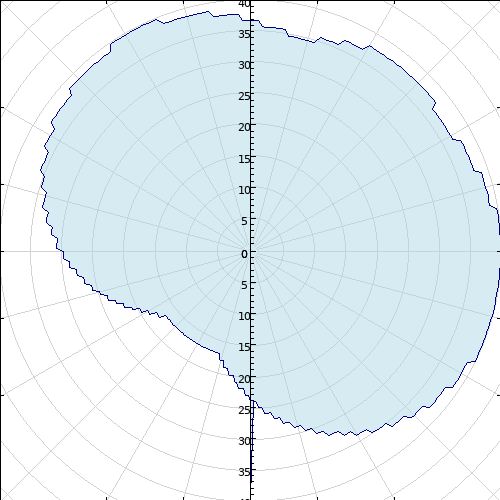

Antenna Type: Directional
Antenna System ID: 4175
| Rad |
dB |
ERP |
Rad |
dB |
ERP |
Rad |
dB |
ERP |
Rad |
dB |
ERP |
| 0 | -3.00 | 13.5 |
90 | 0.00 | 27.0 |
180 | -16.00 | 0.7 |
270 | -10.00 | 2.7 |
| 5 | -4.00 | 10.7 |
95 | 0.00 | 27.0 |
185 | -18.00 | 0.4 |
275 | -8.00 | 4.3 |
| 10 | -5.00 | 8.5 |
100 | 0.00 | 27.0 |
190 | -20.00 | 0.3 |
280 | -7.00 | 5.4 |
| 15 | -5.00 | 8.5 |
105 | 0.00 | 27.0 |
195 | -22.00 | 0.2 |
285 | -6.00 | 6.8 |
| 20 | -4.00 | 10.7 |
110 | 0.00 | 27.0 |
200 | -23.00 | 0.1 |
290 | -5.00 | 8.5 |
| 25 | -3.00 | 13.5 |
115 | 0.00 | 27.0 |
205 | -23.00 | 0.1 |
295 | -4.00 | 10.7 |
| 30 | -2.00 | 17.0 |
120 | -1.00 | 21.4 |
210 | -23.00 | 0.1 |
300 | -3.00 | 13.5 |
| 35 | -2.00 | 17.0 |
125 | -2.00 | 17.0 |
215 | -23.00 | 0.1 |
305 | -2.00 | 17.0 |
| 40 | -2.00 | 17.0 |
130 | -2.00 | 17.0 |
220 | -23.00 | 0.1 |
310 | -2.00 | 17.0 |
| 45 | -2.00 | 17.0 |
135 | -3.00 | 13.5 |
225 | -23.00 | 0.1 |
315 | -1.00 | 21.4 |
| 50 | -2.00 | 17.0 |
140 | -4.00 | 10.7 |
230 | -23.00 | 0.1 |
320 | -1.00 | 21.4 |
| 55 | -3.00 | 13.5 |
145 | -5.00 | 8.5 |
235 | -22.00 | 0.2 |
325 | -1.00 | 21.4 |
| 60 | -3.00 | 13.5 |
150 | -6.00 | 6.8 |
240 | -21.00 | 0.2 |
330 | 0.00 | 27.0 |
| 65 | -2.00 | 17.0 |
155 | -8.00 | 4.3 |
245 | -19.00 | 0.3 |
335 | 0.00 | 27.0 |
| 70 | -2.00 | 17.0 |
160 | -9.00 | 3.4 |
250 | -17.00 | 0.5 |
340 | -1.00 | 21.4 |
| 75 | -1.00 | 21.4 |
165 | -11.00 | 2.1 |
255 | -15.00 | 0.9 |
345 | -1.00 | 21.4 |
| 80 | 0.00 | 27.0 |
170 | -13.00 | 1.4 |
260 | -13.00 | 1.4 |
350 | -1.00 | 21.4 |
| 85 | 0.00 | 27.0 |
175 | -14.00 | 1.1 |
265 | -11.00 | 2.1 |
355 | -2.00 | 17.0 |
|
| Limited to 18.3 kW and 154.5 m to 244C1 (azm.=50.2º); 9.5 kW and 149.8 m to 243B (azm.=156.9º); 100 kW and 248.1 m to 243B1 (azm.=297.7º); 1.41 kW and 156.5 m to 244B1 (azm.=207.5º); 100 kW and 180 m to 244B1 (azm.=220.3º); 100 kW and 169 m to 244B1 (azm.=113.1º); 6.2 kW and 154 m to 244A (azm.=276º); 30 kW and 154.7 m to 245B1 (azm.=238.4º); 19 kW and 156.1 m to 245B1 (azm.=8.7º); 13.3 kW and 156.8 m to 245B1 (azm.=174.8º) |
| Limité à 18.3 kW et 154.5 m à 244C1 (azm.=50.2º); 9.5 kW et 149.8 m à 243B (azm.=156.9º); 100 kW et 248.1 m à 243B1 (azm.=297.7º); 1.41 kW et 156.5 m à 244B1 (azm.=207.5º); 100 kW et 180 m à 244B1 (azm.=220.3º); 100 kW et 169 m à 244B1 (azm.=113.1º); 6.2 kW et 154 m à 244A (azm.=276º); 30 kW et 154.7 m à 245B1 (azm.=238.4º); 19 kW et 156.1 m à 245B1 (azm.=8.7º); 13.3 kW et 156.8 m à 245B1 (azm.=174.8º)
|
|
|
| Broadcasting Certificate effective date | 09/01/2014 | | Broadcasting Certificate renewal date or LOA or OATA expiry date | 08/31/2028 | | International coordination request sent | 04/06/2006 | | International coordination reply received | 06/14/2006 | | Application received | 03/14/2006 | | Letter of Authorization issued | 07/27/2006 | | On-air date | 05/28/2007 | | CRTC letter date | 03/09/2006 | | CRTC hearing date | 07/11/2006 |
|
