Industry Canada File Number: 1063
CRTC Decision Number: 110642
Channel: 9
Station Class: R
Status: Operational
NAD83 Coordinates: 42 9' 11.88" N 82 57' 11.16" W
REC measured distance to USA: 15.4 km - 265.4
Site Elevation: 180 m
Allocation Planning Zone: 1
Effective HAAT: 186.1 m
Site Elevation: 180 m
Overall Antenna Height Above Ground: 222.5 m
Radiation Center Above Mean Sea Level: 370.5 m
Effective Radiated Power (ERP): 13.03 kW average / 26 kW peak

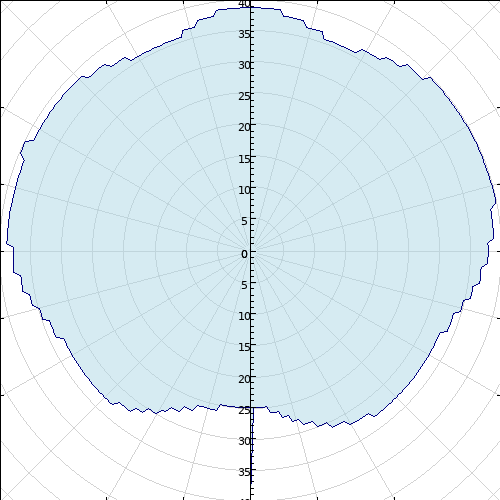

Antenna Type: Directional
Antenna System ID: 2083
| Rad |
dB |
ERP |
Rad |
dB |
ERP |
Rad |
dB |
ERP |
Rad |
dB |
ERP |
| 0 | -1.40 | 9.4 |
90 | -2.38 | 7.5 |
180 | -15.74 | 0.3 |
270 | -2.21 | 7.8 |
| 5 | -1.63 | 9.0 |
95 | -3.30 | 6.1 |
185 | -15.59 | 0.4 |
275 | -1.68 | 8.9 |
| 10 | -2.35 | 7.6 |
100 | -4.39 | 4.7 |
190 | -15.16 | 0.4 |
280 | -1.32 | 9.6 |
| 15 | -3.20 | 6.2 |
105 | -5.58 | 3.6 |
195 | -14.62 | 0.4 |
285 | -1.11 | 10.1 |
| 20 | -4.18 | 5.0 |
110 | -6.67 | 2.8 |
200 | -13.84 | 0.5 |
290 | -1.02 | 10.3 |
| 25 | -4.39 | 4.7 |
115 | -7.39 | 2.4 |
205 | -12.70 | 0.7 |
295 | -0.99 | 10.4 |
| 30 | -3.80 | 5.4 |
120 | -7.67 | 2.2 |
210 | -10.97 | 1.0 |
300 | -1.05 | 10.2 |
| 35 | -2.86 | 6.7 |
125 | -7.56 | 2.3 |
215 | -9.50 | 1.5 |
305 | -1.18 | 9.9 |
| 40 | -1.87 | 8.5 |
130 | -7.45 | 2.3 |
220 | -8.26 | 1.9 |
310 | -1.44 | 9.3 |
| 45 | -1.20 | 9.9 |
135 | -7.53 | 2.3 |
225 | -7.52 | 2.3 |
315 | -1.87 | 8.5 |
| 50 | -0.50 | 11.6 |
140 | -7.69 | 2.2 |
230 | -7.24 | 2.5 |
320 | -2.53 | 7.3 |
| 55 | -0.13 | 12.7 |
145 | -8.12 | 2.0 |
235 | -7.33 | 2.4 |
325 | -3.44 | 5.9 |
| 60 | 0.00 | 13.0 |
150 | -8.94 | 1.7 |
240 | -7.40 | 2.4 |
330 | -4.38 | 4.8 |
| 65 | -0.10 | 12.7 |
155 | -9.78 | 1.4 |
245 | -7.07 | 2.6 |
335 | -4.94 | 4.2 |
| 70 | -0.27 | 12.2 |
160 | -11.11 | 1.0 |
250 | -6.27 | 3.1 |
340 | -4.47 | 4.7 |
| 75 | -0.70 | 11.1 |
165 | -12.50 | 0.7 |
255 | -5.12 | 4.0 |
345 | -3.41 | 5.9 |
| 80 | -1.10 | 10.1 |
170 | -14.09 | 0.5 |
260 | -3.99 | 5.2 |
350 | -2.29 | 7.7 |
| 85 | -1.64 | 8.9 |
175 | -15.25 | 0.4 |
265 | -2.98 | 6.6 |
355 | -1.60 | 9.0 |
|
|
| Broadcasting Certificate effective date | 09/01/2014 | | Broadcasting Certificate renewal date or LOA or OATA expiry date | 09/01/2017 | | International coordination request sent | 05/13/2011 | | International coordination reply received | 06/24/2011 | | Application received | 05/09/2011 | | Letter of Authorization issued | 10/14/2011 | | On-air date | 07/30/2014 | | CRTC letter date | 05/11/2011 | | CRTC hearing date | 10/06/2011 |
|
