Industry Canada File Number: 321
CRTC Decision Number: 120611
Channel: 25
Station Class: R
Status:
NAD83 Coordinates: 45 30' 11.16" N 75 51' 1.08" W
REC measured distance to USA: 83.0 km - 147.6
Site Elevation: 351 m
Allocation Planning Zone: 1
Effective HAAT: 426 m
Site Elevation: 351 m
Overall Antenna Height Above Ground: 219 m
Radiation Center Above Mean Sea Level: 558 m
Effective Radiated Power (ERP): 152.498 kW

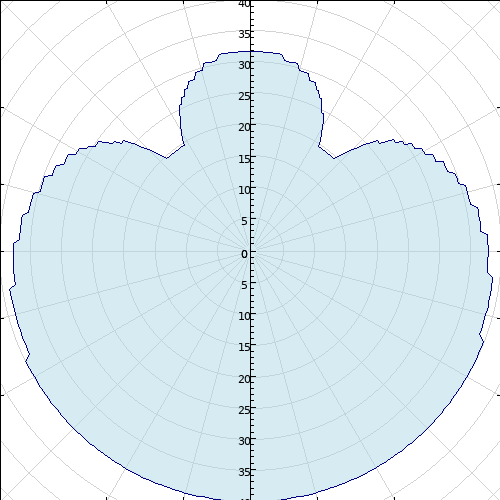

Antenna Type: Directional
Antenna System ID: 2023
| Rad |
dB |
ERP |
Rad |
dB |
ERP |
Rad |
dB |
ERP |
Rad |
dB |
ERP |
| 0 | -8.00 | 24.2 |
90 | -2.00 | 96.2 |
180 | 0.00 | 152.5 |
270 | -2.00 | 96.2 |
| 5 | -8.00 | 24.2 |
95 | -2.00 | 96.2 |
185 | 0.00 | 152.5 |
275 | -3.00 | 76.4 |
| 10 | -9.00 | 19.2 |
100 | -1.00 | 121.1 |
190 | 0.00 | 152.5 |
280 | -4.00 | 60.7 |
| 15 | -10.00 | 15.2 |
105 | -1.00 | 121.1 |
195 | 0.00 | 152.5 |
285 | -4.00 | 60.7 |
| 20 | -11.00 | 12.1 |
110 | -1.00 | 121.1 |
200 | 0.00 | 152.5 |
290 | -5.00 | 48.2 |
| 25 | -13.00 | 7.6 |
115 | 0.00 | 152.5 |
205 | 0.00 | 152.5 |
295 | -7.00 | 30.4 |
| 30 | -17.00 | 3.0 |
120 | 0.00 | 152.5 |
210 | 0.00 | 152.5 |
300 | -8.00 | 24.2 |
| 35 | -20.00 | 1.5 |
125 | 0.00 | 152.5 |
215 | 0.00 | 152.5 |
305 | -10.00 | 15.2 |
| 40 | -20.00 | 1.5 |
130 | 0.00 | 152.5 |
220 | 0.00 | 152.5 |
310 | -13.00 | 7.6 |
| 45 | -17.00 | 3.0 |
135 | 0.00 | 152.5 |
225 | 0.00 | 152.5 |
315 | -17.00 | 3.0 |
| 50 | -13.00 | 7.6 |
140 | 0.00 | 152.5 |
230 | 0.00 | 152.5 |
320 | -20.00 | 1.5 |
| 55 | -10.00 | 15.2 |
145 | 0.00 | 152.5 |
235 | 0.00 | 152.5 |
325 | -20.00 | 1.5 |
| 60 | -8.00 | 24.2 |
150 | 0.00 | 152.5 |
240 | 0.00 | 152.5 |
330 | -18.00 | 2.4 |
| 65 | -6.00 | 38.3 |
155 | 0.00 | 152.5 |
245 | -1.00 | 121.1 |
335 | -14.00 | 6.1 |
| 70 | -5.00 | 48.2 |
160 | 0.00 | 152.5 |
250 | -1.00 | 121.1 |
340 | -11.00 | 12.1 |
| 75 | -4.00 | 60.7 |
165 | 0.00 | 152.5 |
255 | -1.00 | 121.1 |
345 | -10.00 | 15.2 |
| 80 | -3.00 | 76.4 |
170 | 0.00 | 152.5 |
260 | -1.00 | 121.1 |
350 | -9.00 | 19.2 |
| 85 | -3.00 | 76.4 |
175 | 0.00 | 152.5 |
265 | -2.00 | 96.2 |
355 | -8.00 | 24.2 |
|
|
| Broadcasting Certificate effective date | 09/01/2014 | | Broadcasting Certificate renewal date or LOA or OATA expiry date | 08/31/2025 | | Application received | 08/24/2012 | | Letter of Authorization issued | 11/05/2012 | | On-air date | 02/25/2014 | | CRTC letter date | 08/29/2012 | | CRTC hearing date | 11/02/2012 |
|
