Industry Canada File Number: 586
Channel: 35
Station Class: R
Status: Operational
NAD83 Coordinates: 45 13' 1.92" N 75 33' 48.96" W
REC measured distance to USA: 44.2 km - 144.2
Site Elevation: 89 m
Effective HAAT: 177 m
Site Elevation: 89 m
Overall Antenna Height Above Ground: 225 m
Radiation Center Above Mean Sea Level: 265 m
Effective Radiated Power (ERP): 42.8 kW

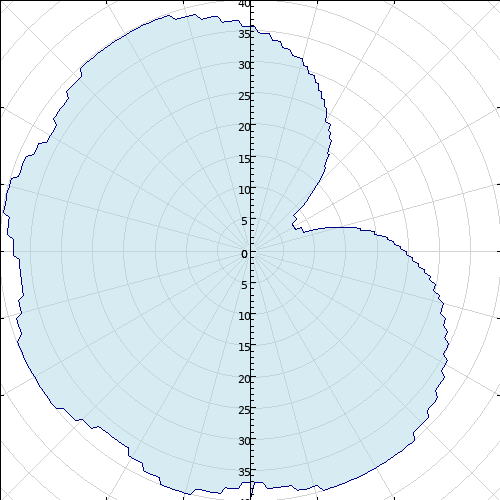

Antenna Type: Directional
Antenna System ID: 2414
| Rad |
dB |
ERP |
Rad |
dB |
ERP |
Rad |
dB |
ERP |
Rad |
dB |
ERP |
| 0 | -4.00 | 17.0 |
90 | -15.00 | 1.4 |
180 | -3.00 | 21.5 |
270 | -2.00 | 27.0 |
| 5 | -5.00 | 13.5 |
95 | -13.00 | 2.1 |
185 | -2.00 | 27.0 |
275 | -1.00 | 34.0 |
| 10 | -7.00 | 8.5 |
100 | -10.00 | 4.3 |
190 | -1.00 | 34.0 |
280 | 0.00 | 42.8 |
| 15 | -8.00 | 6.8 |
105 | -8.00 | 6.8 |
195 | 0.00 | 42.8 |
285 | 0.00 | 42.8 |
| 20 | -10.00 | 4.3 |
110 | -7.00 | 8.5 |
200 | 0.00 | 42.8 |
290 | -1.00 | 34.0 |
| 25 | -13.00 | 2.1 |
115 | -5.00 | 13.5 |
205 | -1.00 | 34.0 |
295 | -2.00 | 27.0 |
| 30 | -16.00 | 1.1 |
120 | -4.00 | 17.0 |
210 | -2.00 | 27.0 |
300 | -3.00 | 21.5 |
| 35 | -18.00 | 0.7 |
125 | -3.00 | 21.5 |
215 | -3.00 | 21.5 |
305 | -2.00 | 27.0 |
| 40 | -21.00 | 0.3 |
130 | -2.00 | 27.0 |
220 | -3.00 | 21.5 |
310 | -2.00 | 27.0 |
| 45 | -25.00 | 0.1 |
135 | -1.00 | 34.0 |
225 | -2.00 | 27.0 |
315 | -1.00 | 34.0 |
| 50 | -31.00 | 0.0 |
140 | 0.00 | 42.8 |
230 | -1.00 | 34.0 |
320 | 0.00 | 42.8 |
| 55 | -31.00 | 0.0 |
145 | 0.00 | 42.8 |
235 | 0.00 | 42.8 |
325 | 0.00 | 42.8 |
| 60 | -32.00 | 0.0 |
150 | 0.00 | 42.8 |
240 | 0.00 | 42.8 |
330 | 0.00 | 42.8 |
| 65 | -31.00 | 0.0 |
155 | 0.00 | 42.8 |
245 | 0.00 | 42.8 |
335 | 0.00 | 42.8 |
| 70 | -31.00 | 0.0 |
160 | 0.00 | 42.8 |
250 | -1.00 | 34.0 |
340 | 0.00 | 42.8 |
| 75 | -25.00 | 0.1 |
165 | -1.00 | 34.0 |
255 | -2.00 | 27.0 |
345 | -1.00 | 34.0 |
| 80 | -21.00 | 0.3 |
170 | -2.00 | 27.0 |
260 | -3.00 | 21.5 |
350 | -2.00 | 27.0 |
| 85 | -18.00 | 0.7 |
175 | -2.00 | 27.0 |
265 | -3.00 | 21.5 |
355 | -3.00 | 21.5 |
|
|
| Broadcasting Certificate effective date | 09/23/2020 | | Broadcasting Certificate renewal date or LOA or OATA expiry date | 08/31/2027 | | International coordination request sent | 05/23/2019 | | International coordination reply received | 05/23/2019 | | Application received | 03/18/2019 | | Letter of Authorization issued | 05/24/2019 | | On-air date | 09/03/2020 | | CRTC letter date | 09/20/2010 | | CRTC hearing date | 10/15/2010 |
|
