Call Sign	Community Name	Licensee Name

Industry Canada - Canada

CJMT-DT-2

Ottawa ON

Rogers Media Inc
1 Mount Pleasant, 3rd Floor
6th Floor
Toronto
ON

Industry Canada File Number: 0
Channel: 20
Station Class: R
Status: Allotment
NAD83 Coordinates: 45 13' 0.84" N 75 33' 50.04" W
REC measured distance to USA: 44.2 km - 144.2
Site Elevation: 90 m
Effective HAAT: 202 m
Site Elevation: 90 m
Radiation Center Above Mean Sea Level: 291 m
Effective Radiated Power (ERP): 15 kW

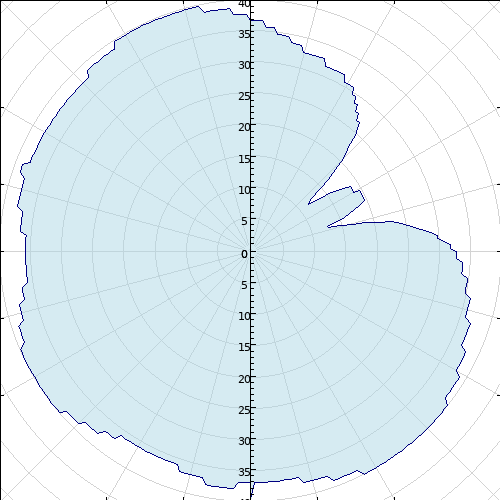

Antenna Type: Directional
Antenna System ID: 2115

Rad	dB	ERP	Rad	dB	ERP	Rad	dB	ERP	Rad	dB	ERP
0	-3.00	7.5	90	-7.00	3.0	180	-3.00	7.5	270	-4.00	6.0
5	-4.00	6.0	95	-6.00	3.8	185	-2.00	9.5	275	-3.00	7.5
10	-5.00	4.7	100	-5.00	4.7	190	-2.00	9.5	280	-3.00	7.5
15	-7.00	3.0	105	-4.00	6.0	195	-3.00	7.5	285	-2.00	9.5
20	-7.00	3.0	110	-3.00	7.5	200	-4.00	6.0	290	-1.00	11.9
25	-8.00	2.4	115	-2.00	9.5	205	-4.00	6.0	295	-2.00	9.5
30	-9.00	1.9	120	-2.00	9.5	210	-4.00	6.0	300	-2.00	9.5
35	-11.00	1.2	125	-1.00	11.9	215	-4.00	6.0	305	-2.00	9.5
40	-13.00	0.8	130	0.00	15.0	220	-2.00	9.5	310	-2.00	9.5
45	-19.00	0.2	135	0.00	15.0	225	-1.00	11.9	315	-2.00	9.5
50	-28.00	0.0	140	0.00	15.0	230	0.00	15.0	320	-1.00	11.9
55	-23.00	0.1	145	0.00	15.0	235	0.00	15.0	325	-1.00	11.9
60	-21.00	0.1	150	0.00	15.0	240	0.00	15.0	330	0.00	15.0
65	-20.00	0.2	155	-1.00	11.9	245	0.00	15.0	335	0.00	15.0
70	-24.00	0.1	160	-1.00	11.9	250	-1.00	11.9	340	0.00	15.0
75	-23.00	0.1	165	-2.00	9.5	255	-2.00	9.5	345	0.00	15.0
80	-15.00	0.5	170	-3.00	7.5	260	-3.00	7.5	350	-1.00	11.9
85	-10.00	1.5	175	-3.00	7.5	265	-4.00	6.0	355	-1.00	11.9
