Industry Canada File Number: 0
Channel: 14
Station Class: LP
Status: Allotment
NAD83 Coordinates: 44 42' 24.84" N 84 52' 57.00" W
REC measured distance to USA: 160.2 km - 38.7
Site Elevation: 387 m
Effective HAAT: 47 m
Site Elevation: 387 m
Radiation Center Above Mean Sea Level: 416 m
Effective Radiated Power (ERP): 1 kW

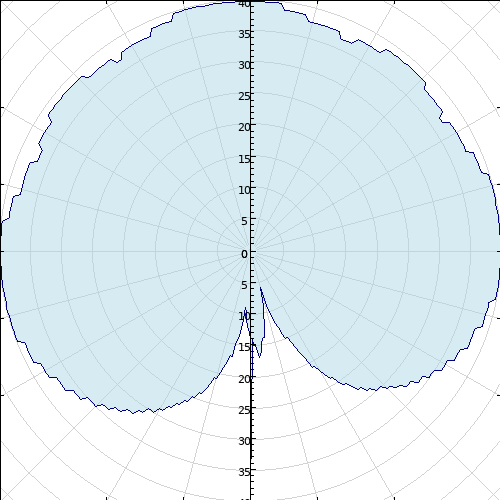

Antenna Type: Directional
Antenna System ID: 221
| Rad |
dB |
ERP |
Rad |
dB |
ERP |
Rad |
dB |
ERP |
Rad |
dB |
ERP |
| 0 | 0.00 | 1.000 |
90 | 0.00 | 1.000 |
180 | -26.00 | 0.003 |
270 | 0.00 | 1.000 |
| 5 | 0.00 | 1.000 |
95 | 0.00 | 1.000 |
185 | -31.00 | 0.001 |
275 | 0.00 | 1.000 |
| 10 | -1.00 | 0.794 |
100 | 0.00 | 1.000 |
190 | -23.00 | 0.005 |
280 | -1.00 | 0.794 |
| 15 | -2.00 | 0.631 |
105 | -1.00 | 0.794 |
195 | -19.00 | 0.013 |
285 | -2.00 | 0.631 |
| 20 | -2.00 | 0.631 |
110 | -2.00 | 0.631 |
200 | -16.00 | 0.025 |
290 | -2.00 | 0.631 |
| 25 | -3.00 | 0.501 |
115 | -3.00 | 0.501 |
205 | -13.00 | 0.050 |
295 | -3.00 | 0.501 |
| 30 | -2.00 | 0.631 |
120 | -4.00 | 0.398 |
210 | -11.00 | 0.079 |
300 | -2.00 | 0.631 |
| 35 | -1.00 | 0.794 |
125 | -5.00 | 0.316 |
215 | -9.00 | 0.126 |
305 | -1.00 | 0.794 |
| 40 | -1.00 | 0.794 |
130 | -7.00 | 0.200 |
220 | -7.00 | 0.200 |
310 | -1.00 | 0.794 |
| 45 | -1.00 | 0.794 |
135 | -9.00 | 0.126 |
225 | -5.00 | 0.316 |
315 | -1.00 | 0.794 |
| 50 | -2.00 | 0.631 |
140 | -11.00 | 0.079 |
230 | -4.00 | 0.398 |
320 | -2.00 | 0.631 |
| 55 | -3.00 | 0.501 |
145 | -14.00 | 0.040 |
235 | -3.00 | 0.501 |
325 | -3.00 | 0.501 |
| 60 | -2.00 | 0.631 |
150 | -18.00 | 0.016 |
240 | -2.00 | 0.631 |
330 | -2.00 | 0.631 |
| 65 | -2.00 | 0.631 |
155 | -23.00 | 0.005 |
245 | -1.00 | 0.794 |
335 | -2.00 | 0.631 |
| 70 | -1.00 | 0.794 |
160 | -27.00 | 0.002 |
250 | 0.00 | 1.000 |
340 | -1.00 | 0.794 |
| 75 | 0.00 | 1.000 |
165 | -34.00 | 0.000 |
255 | 0.00 | 1.000 |
345 | 0.00 | 1.000 |
| 80 | 0.00 | 1.000 |
170 | -27.00 | 0.002 |
260 | 0.00 | 1.000 |
350 | 0.00 | 1.000 |
| 85 | 0.00 | 1.000 |
175 | -23.00 | 0.005 |
265 | 0.00 | 1.000 |
355 | 0.00 | 1.000 |
|
|
|
