Industry Canada File Number: 0
Channel: 32
Station Class: R
Status: Approved
NAD83 Coordinates: 44 8' 12.12" N 85 20' 33.00" W
REC measured distance to USA: 232.8 km - 35.5
Site Elevation: 509 m
Effective HAAT: 427 m
Site Elevation: 509 m
Radiation Center Above Mean Sea Level: 824 m
Effective Radiated Power (ERP): 1000 kW

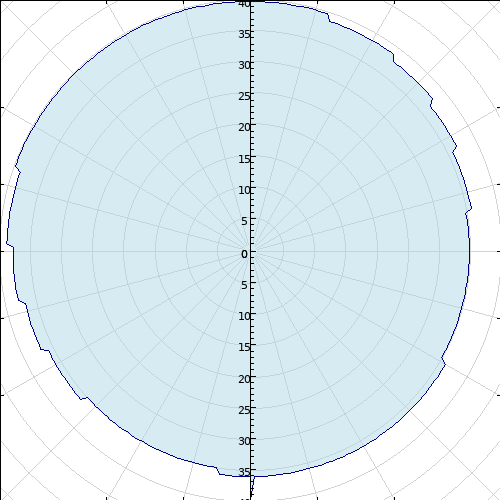

Antenna Type: Directional
Antenna System ID: 198
| Rad |
dB |
ERP |
Rad |
dB |
ERP |
Rad |
dB |
ERP |
Rad |
dB |
ERP |
| 0 | 0.00 | 1000.0 |
90 | -5.00 | 316.2 |
180 | -4.00 | 398.1 |
270 | -2.00 | 631.0 |
| 5 | 0.00 | 1000.0 |
95 | -5.00 | 316.2 |
185 | -4.00 | 398.1 |
275 | -1.00 | 794.3 |
| 10 | 0.00 | 1000.0 |
100 | -5.00 | 316.2 |
190 | -5.00 | 316.2 |
280 | -1.00 | 794.3 |
| 15 | 0.00 | 1000.0 |
105 | -5.00 | 316.2 |
195 | -5.00 | 316.2 |
285 | -1.00 | 794.3 |
| 20 | -1.00 | 794.3 |
110 | -5.00 | 316.2 |
200 | -5.00 | 316.2 |
290 | 0.00 | 1000.0 |
| 25 | -1.00 | 794.3 |
115 | -5.00 | 316.2 |
205 | -5.00 | 316.2 |
295 | 0.00 | 1000.0 |
| 30 | -1.00 | 794.3 |
120 | -4.00 | 398.1 |
210 | -5.00 | 316.2 |
300 | 0.00 | 1000.0 |
| 35 | -1.00 | 794.3 |
125 | -4.00 | 398.1 |
215 | -5.00 | 316.2 |
305 | 0.00 | 1000.0 |
| 40 | -2.00 | 631.0 |
130 | -4.00 | 398.1 |
220 | -5.00 | 316.2 |
310 | 0.00 | 1000.0 |
| 45 | -2.00 | 631.0 |
135 | -4.00 | 398.1 |
225 | -5.00 | 316.2 |
315 | 0.00 | 1000.0 |
| 50 | -2.00 | 631.0 |
140 | -4.00 | 398.1 |
230 | -4.00 | 398.1 |
320 | 0.00 | 1000.0 |
| 55 | -3.00 | 501.2 |
145 | -4.00 | 398.1 |
235 | -4.00 | 398.1 |
325 | 0.00 | 1000.0 |
| 60 | -3.00 | 501.2 |
150 | -4.00 | 398.1 |
240 | -4.00 | 398.1 |
330 | 0.00 | 1000.0 |
| 65 | -4.00 | 398.1 |
155 | -4.00 | 398.1 |
245 | -3.00 | 501.2 |
335 | 0.00 | 1000.0 |
| 70 | -4.00 | 398.1 |
160 | -4.00 | 398.1 |
250 | -3.00 | 501.2 |
340 | 0.00 | 1000.0 |
| 75 | -4.00 | 398.1 |
165 | -4.00 | 398.1 |
255 | -3.00 | 501.2 |
345 | 0.00 | 1000.0 |
| 80 | -5.00 | 316.2 |
170 | -4.00 | 398.1 |
260 | -2.00 | 631.0 |
350 | 0.00 | 1000.0 |
| 85 | -5.00 | 316.2 |
175 | -4.00 | 398.1 |
265 | -2.00 | 631.0 |
355 | 0.00 | 1000.0 |
|
|
| International coordination request sent | 12/18/2020 | | International coordination reply received | 01/12/2021 |
|
